Y27A Series Push-Pull Circular Electrical Connectors Y27A-2661ZJ4B1M 61Pin Socket Connector
Y27A-2661ZJ4B1M is a bayonet-locking circular panel mount receptacle pre-installed with male pin contacts, featuring 61 positions, it features outstanding vibration resistance, stable electrical performance and operating temperature from -55℃ to +125℃, mates perfectly with Y27P-2661TK4B1M plug for wiring harness and is commonly used in aerospace, industrial control and precision instrumentation.
Product displa
Product Performance Details
| Product model |
Y27A-2661ZJ4B1M |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum |
Insulation resistance |
4000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 92% to 98% |
| Collision |
Acceleration 980m/s2 |
Withstand voltage |
1300V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
5A |
Physical product display

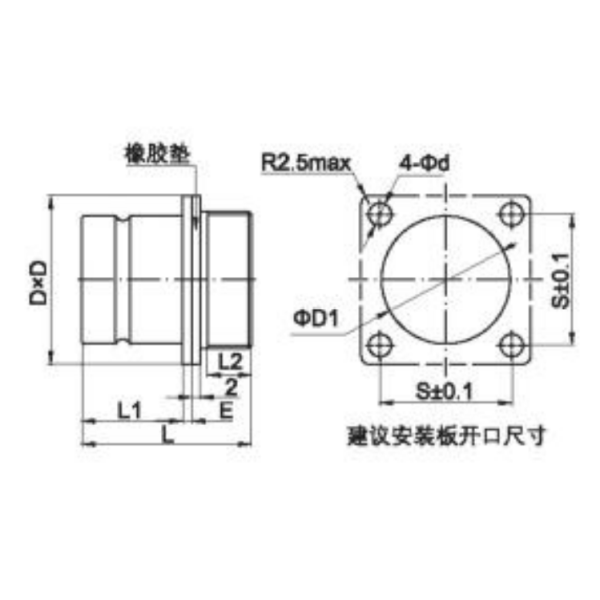

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
